LCG – Longitudinal Chain Conveyors

High storage capacity and low maintenance requirements, for efficient and reliable wood log handling.

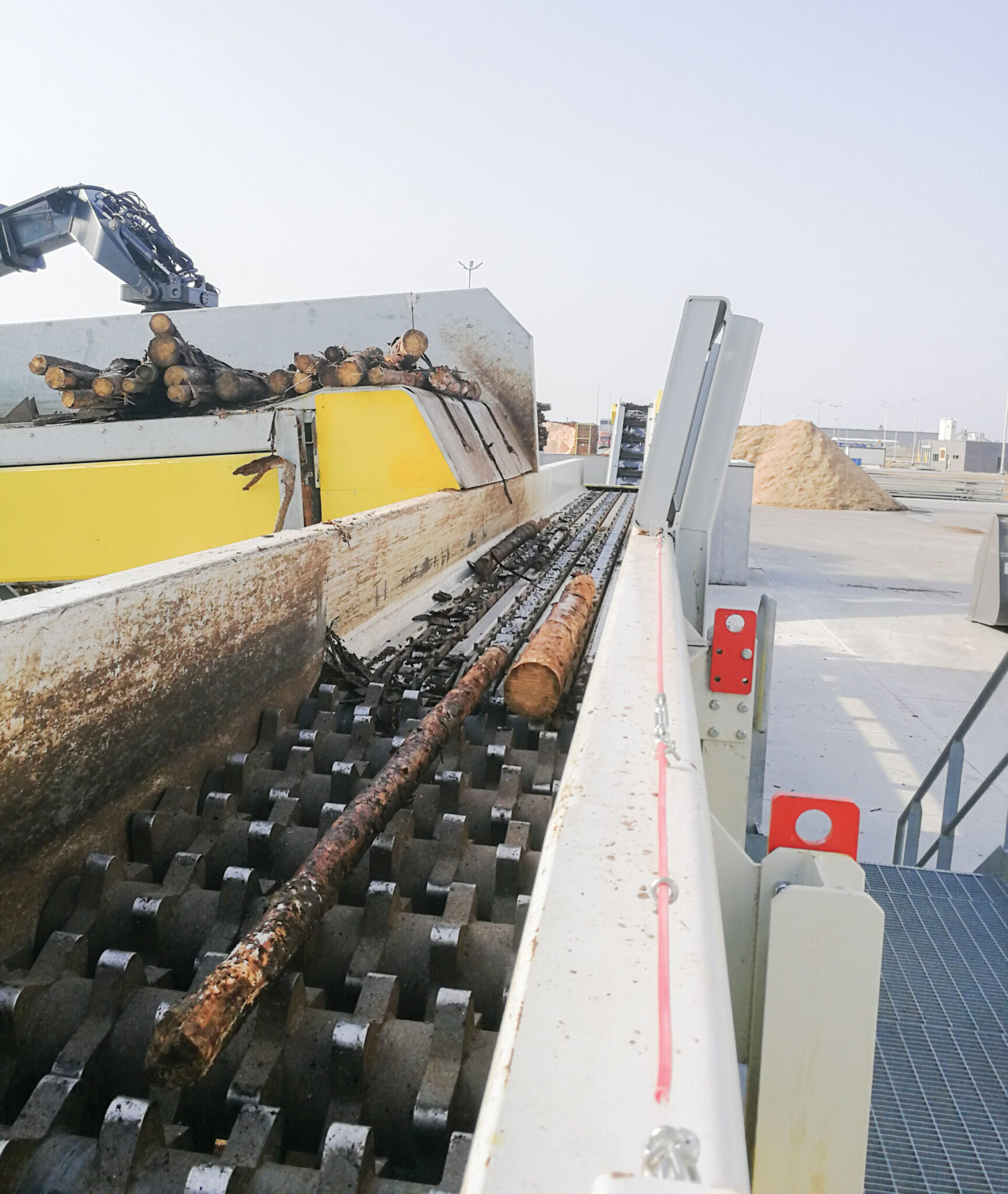

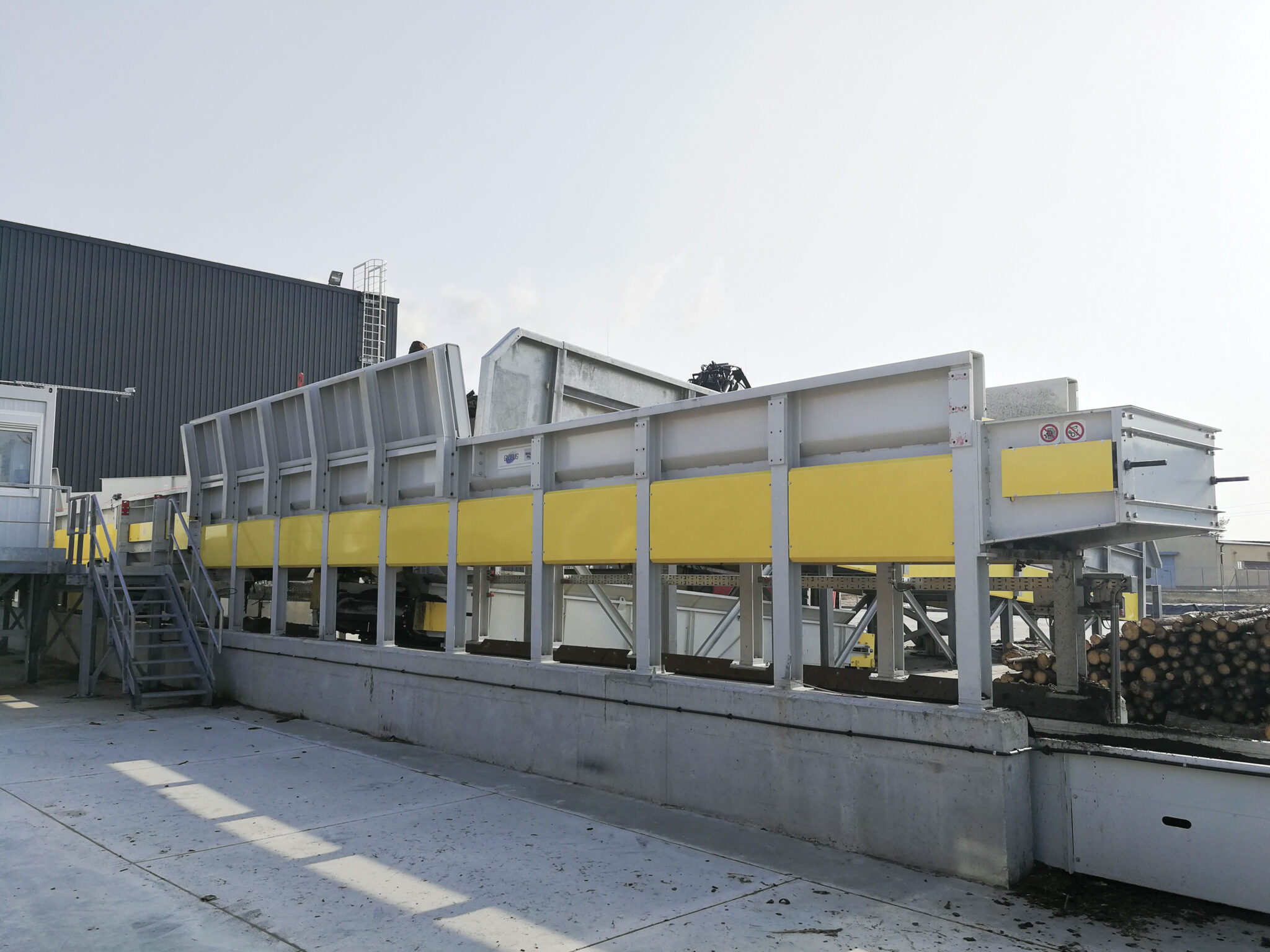

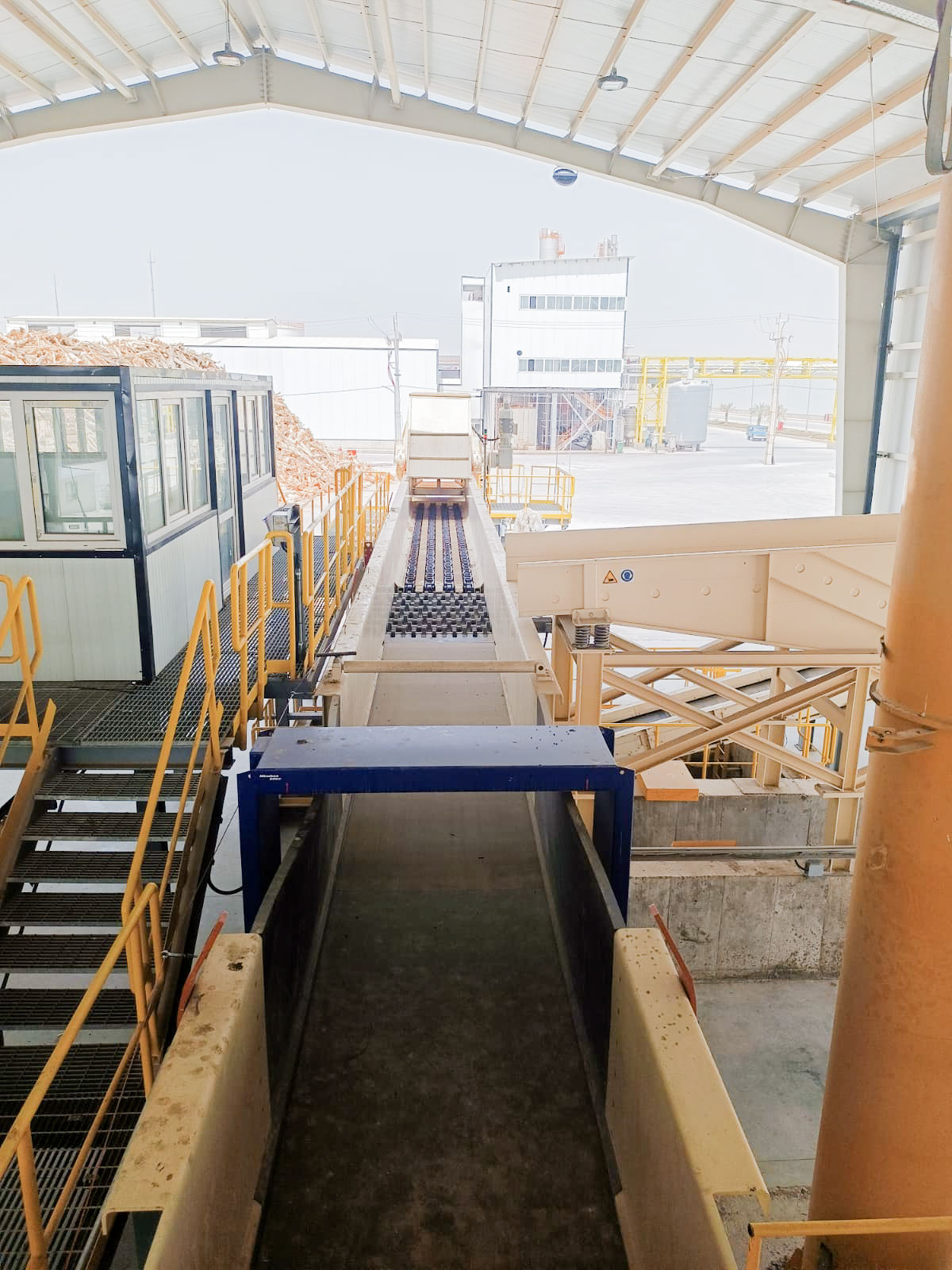

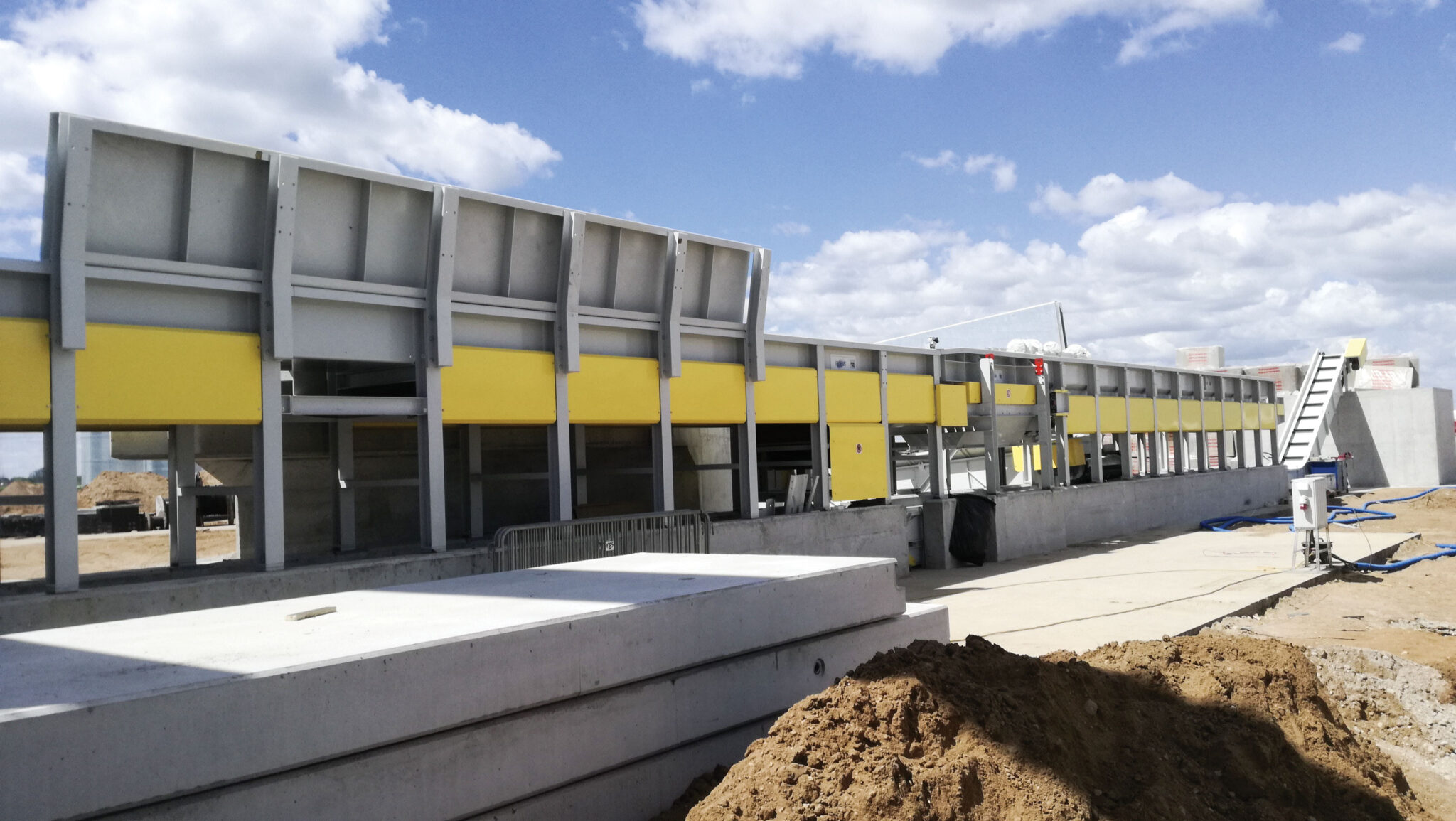

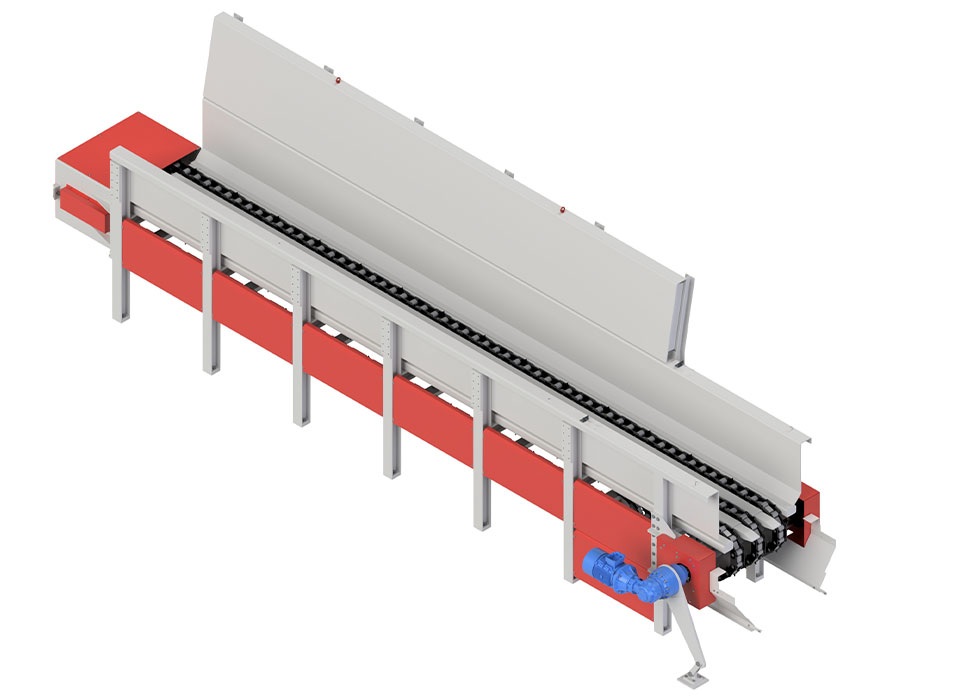

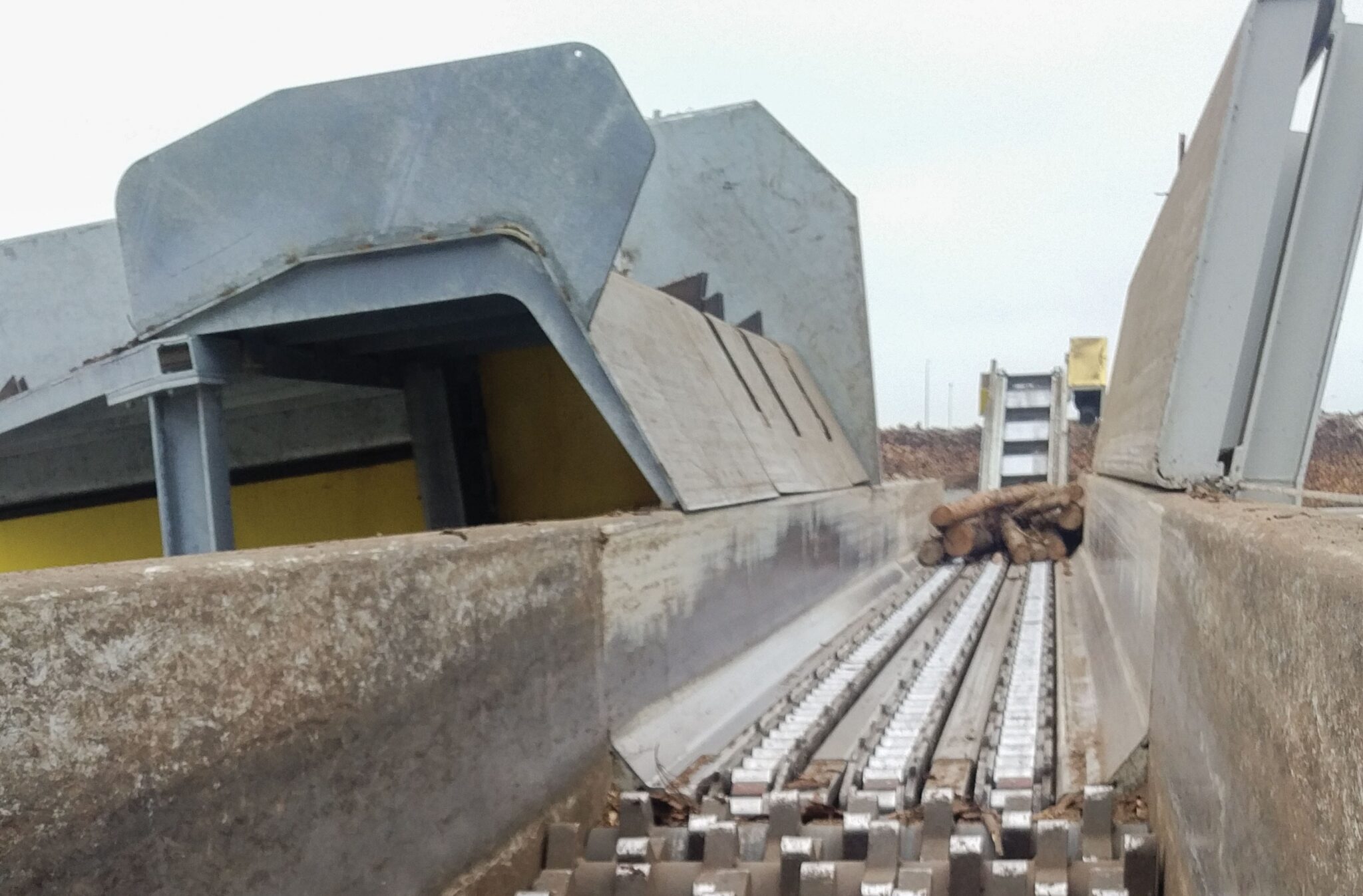

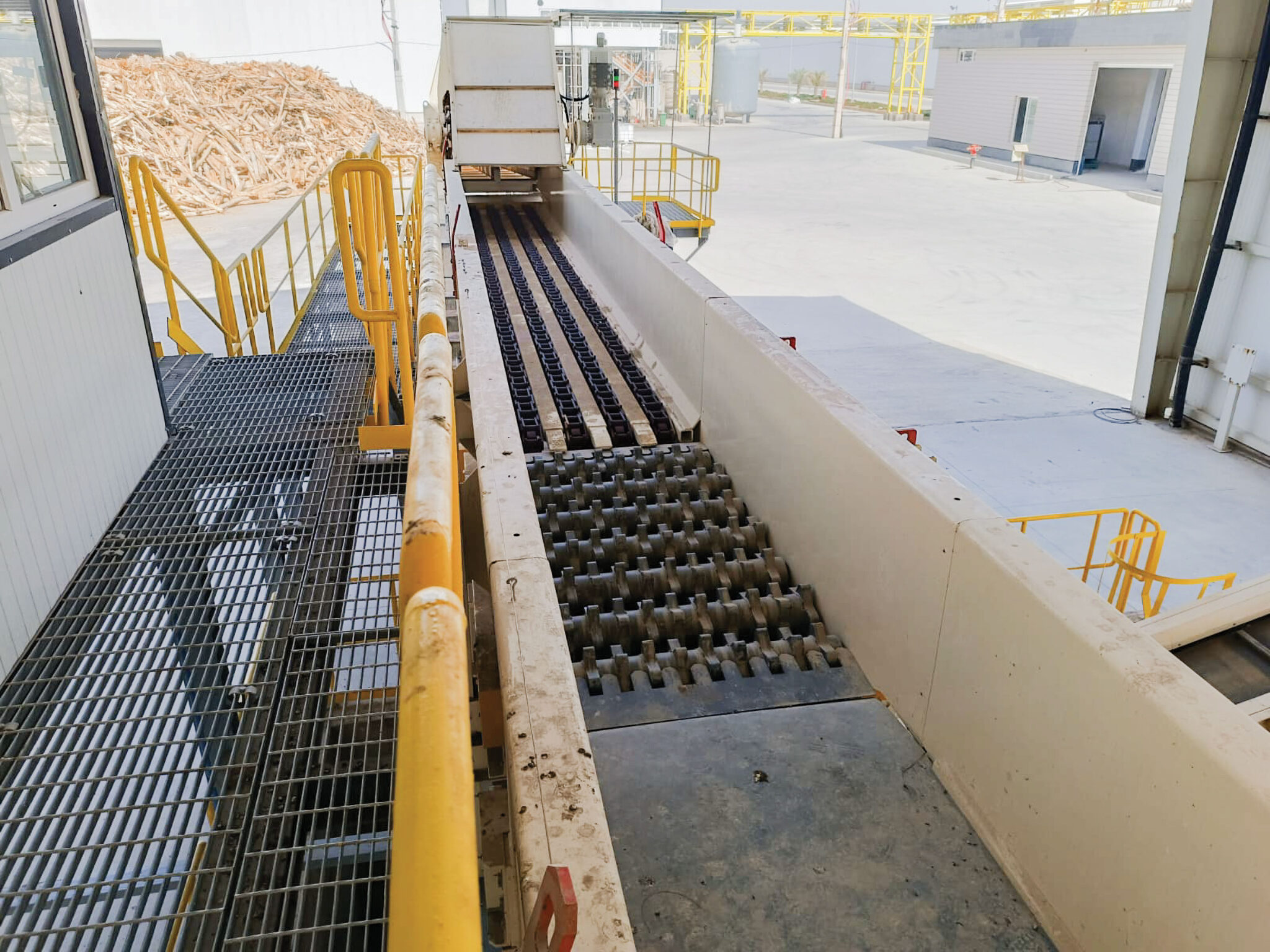

LCG is a robust and efficient longitudinal chain conveyor designed for the continuous feeding of wood logs.
Integrated scrapers for automatic chain rail cleaning
Adjustable speed via inverter
Roller system to reduce wear and extend operational life
Quick-assembly structure
Wood based panels
MDF/HDF PB/SPB OSB/LSB/FOSB
Pressed wood packaging
Pallet blocks and pressed pallets
Pellets & Energy
Wood pellets, green fuels and biomass
Efficient Longitudinal Chain Conveyor designed for the continuous feeding of wood logs

Built for durability, it features a heavy-duty structure that absorbs shocks from log impact, ensuring reliable operation even in the most demanding industrial environments.
With its modular design, LCG can be easily extended or adapted to meet evolving production needs. It is available in various lengths, widths, and chain configurations, making it a versatile solution for different chipping lines.
Key features include:
- Integrated scrapers for automatic chain rail cleaning
- Adjustable speed via inverter for optimized process control
- Roller system to reduce wear and extend operational life
- Quick-assembly structure, eliminating on-site welding for fast installation
With high storage capacity and low maintenance requirements, LCG is an ideal solution for efficient and reliable wood log handling.
Customizable dimensions
Flexible loading options
Continuous and precise log feeding

Modular design to meet evolving production needs
Length: from 8 to 24 meters, modular for extended configurations
Width: from 800 mm to 1,800 mm, depending on the chipping line
Customizable sidewalls for optimized material containment
Compatible with direct crane loading or automatic dosing systems (e.g., TCD)
Heavy-duty frame designed for impact resistance
Torque-based adaptive speed control via inverter for smooth operation
